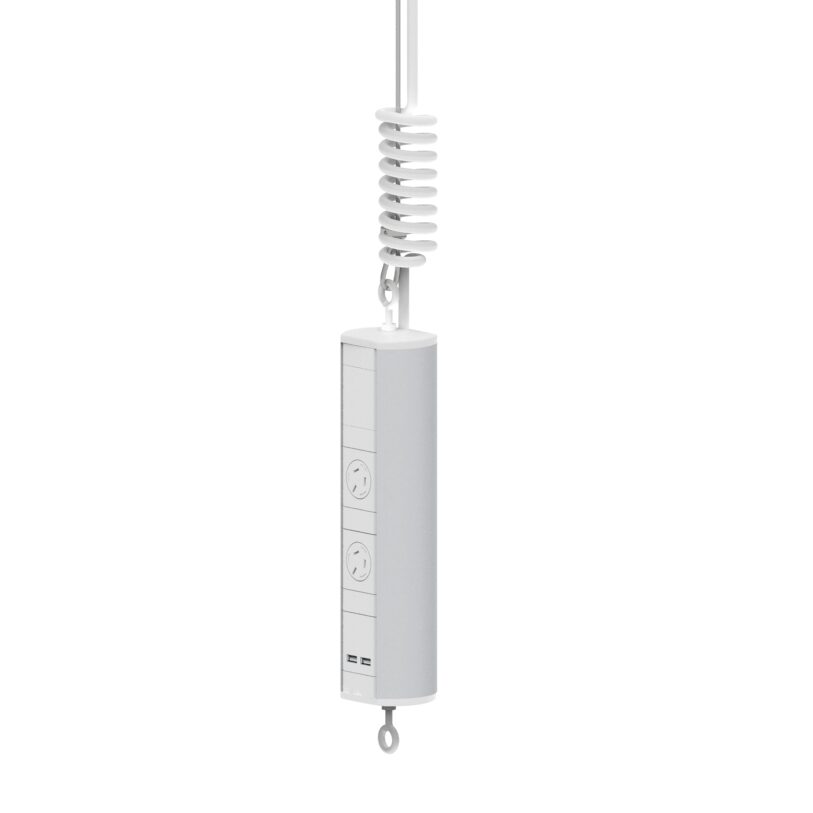

Elevate Retractable Power - 2 (Double) GPO's to both faces & USB A/A to one face only

--- DESIGN CHANGE NOTICE - NOW FITTED WITH A 3-PIN PLUG ---

Elevate is a ceiling mounted retractable power solution specifically designed to accommodate a flexible and changing workspace.

Elevate allows the workplace to set-up with freedom without the constraints of fixed floor boxes and powerpoles or umbilical cords by installing retractable power modules that can be lowered to the workpoint.

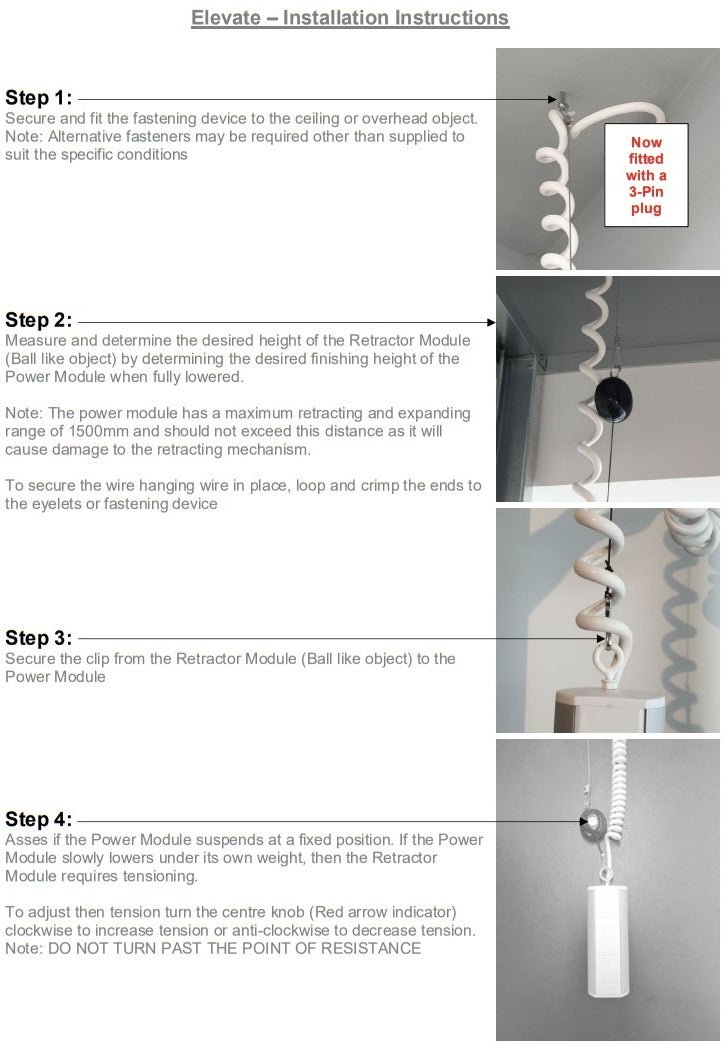

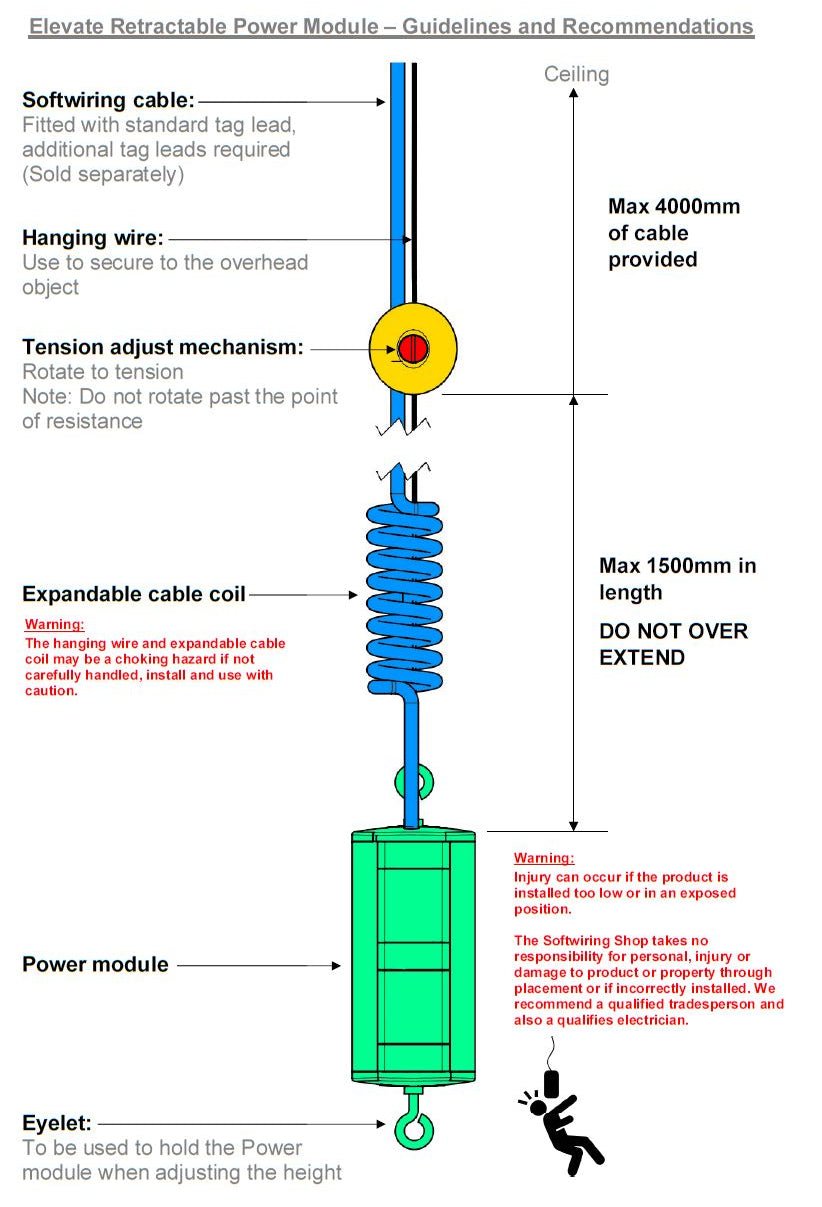

Refer to the attached Installation Instructions, Recommendations and Guidelines.

Product Features

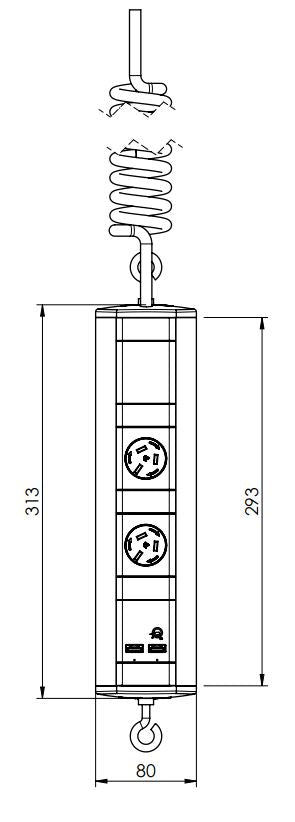

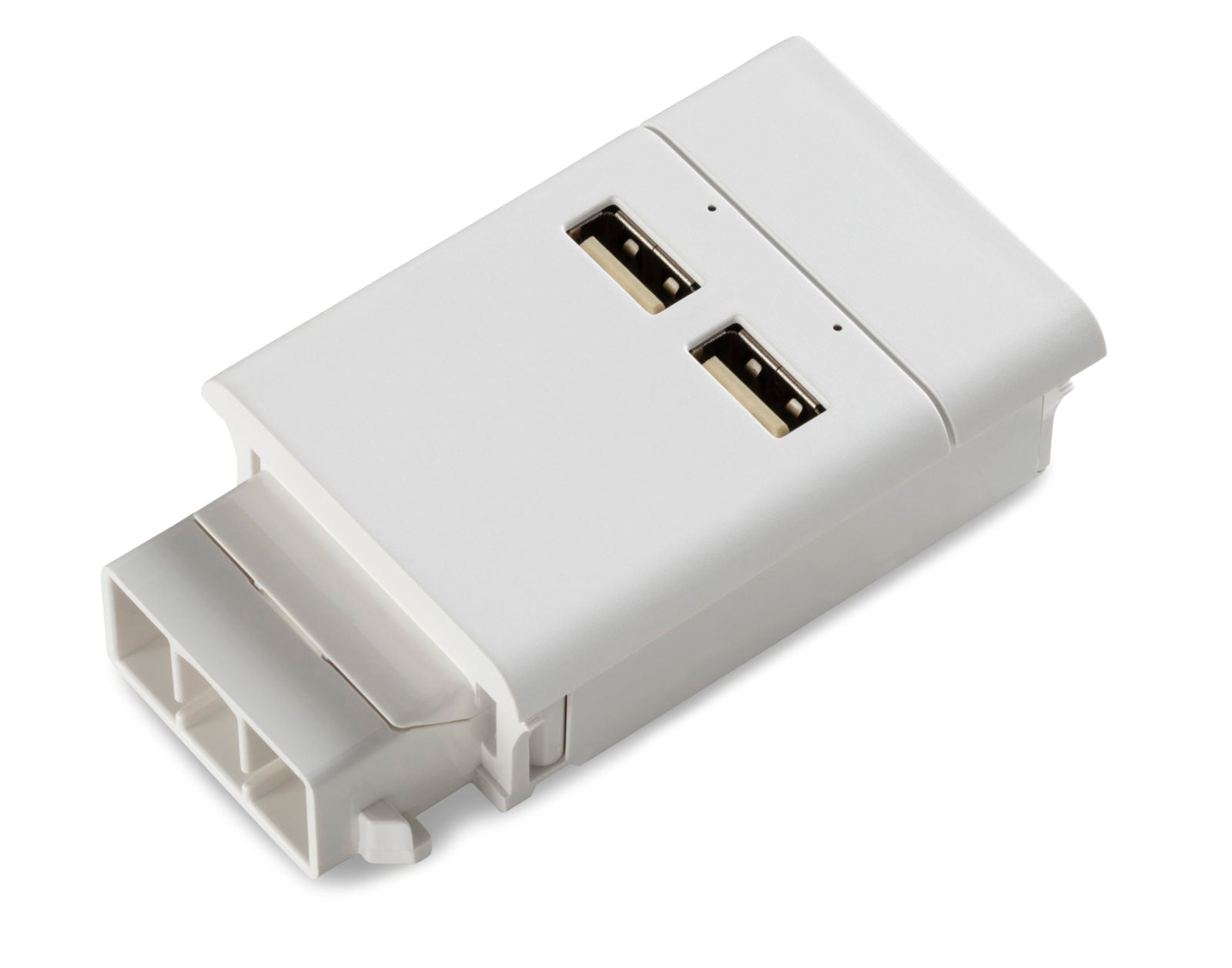

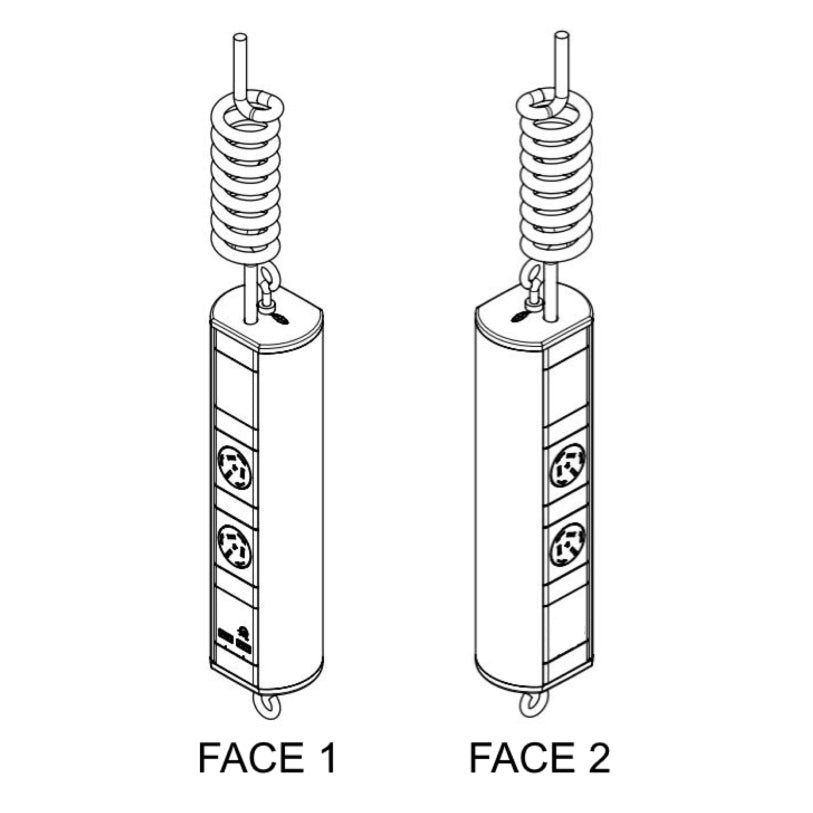

- CONFIGURATION: 2x GPO's (Twisto type and not externally switched) to both faces & USB A/A (Fast charging 30W shared) to one face only

Note: USB orientation is dependant on stock

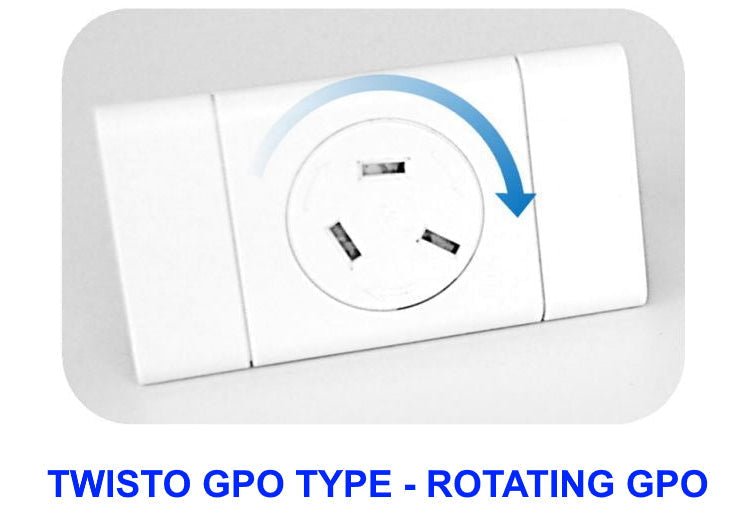

Note: Twisto is a rotating cover concealing the auto switched outlet, preventing accidental access, it is engaged by inserting and rotating 45° to connect the device.

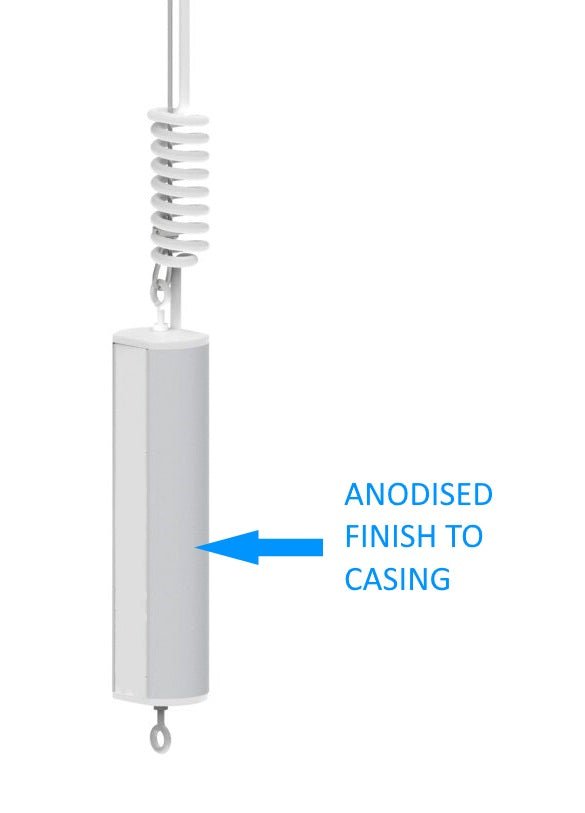

- The colour refers to the majority of parts excluding the casing as per the image shown which due to increased manufacturing costs now comes standard as anodised extrusion casing.

- The casing is available in Black or White with matching powdercoat casing at an additional cost as per the below costs. This may also add additional manufacturing time to the lead-times noted below. If you would like this option then please email us for a tax invoice to be paid by EFT prior to manufacturing.

Matching powdercoat casing costs:
- Quantity 1 Elevate unit @ $POA each
- Quantity 5 or more Elevate units @ $POA each

- Maximum extending/retracting length 1500mm (DO NOT OVER EXTEND OR IT CAN DAMAGE THE MECHANISM)

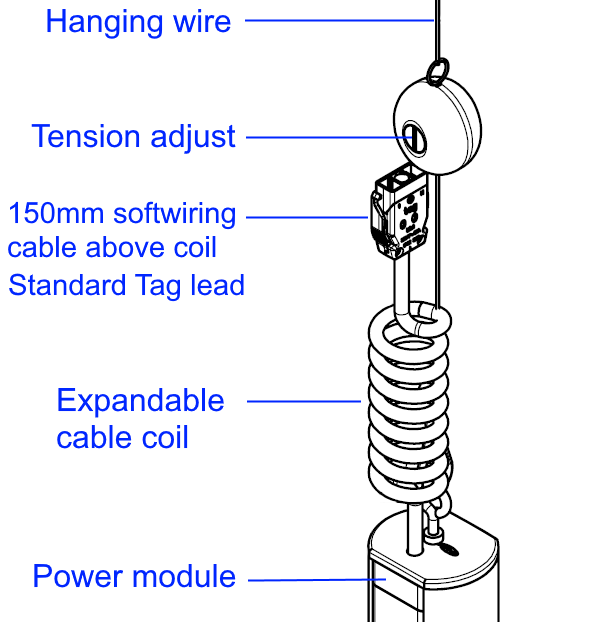

- Hanging wire up to 4m to accommodate high ceilings (May excludes site specific Anchors, mounts and fixings to building structure)

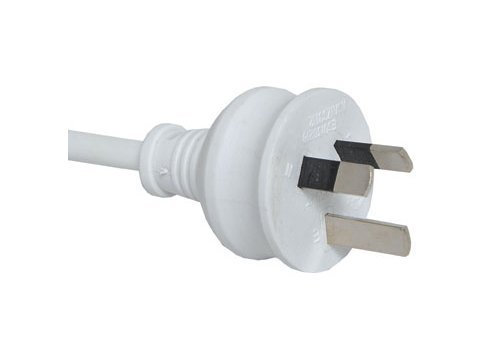

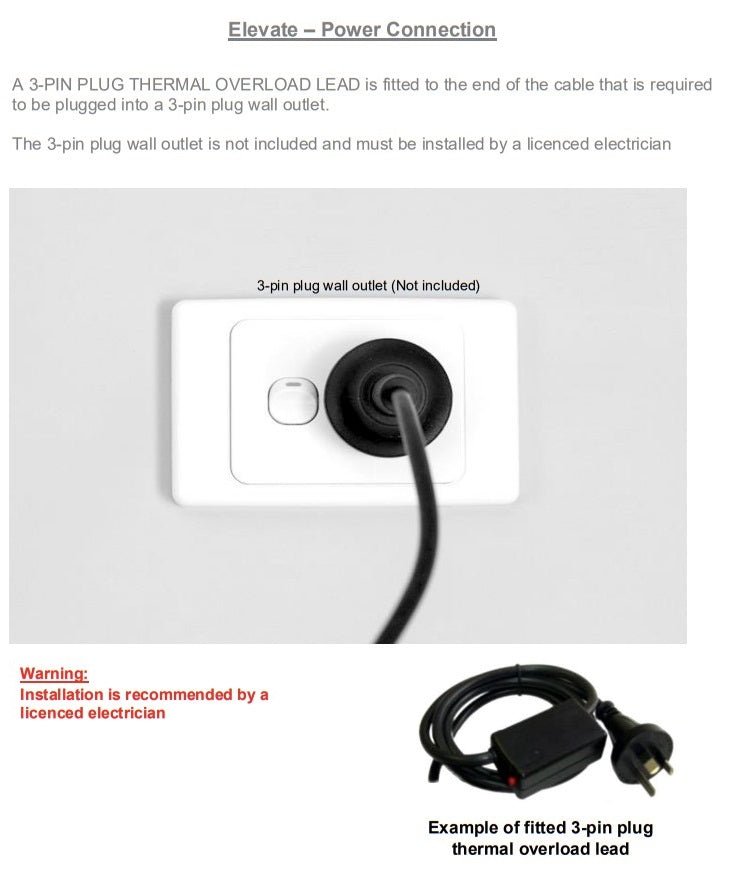

- Comes with a 3-Plug with thermal overload 1000mm past the end of the cable coil

- Coil and cable colour is to match

- Retractable mechanism (Ball at the top) is only available in Black

- Retractable mechanism (Ball at the top) may require adjusting the tension if the power module does not stay in the required position when lowered

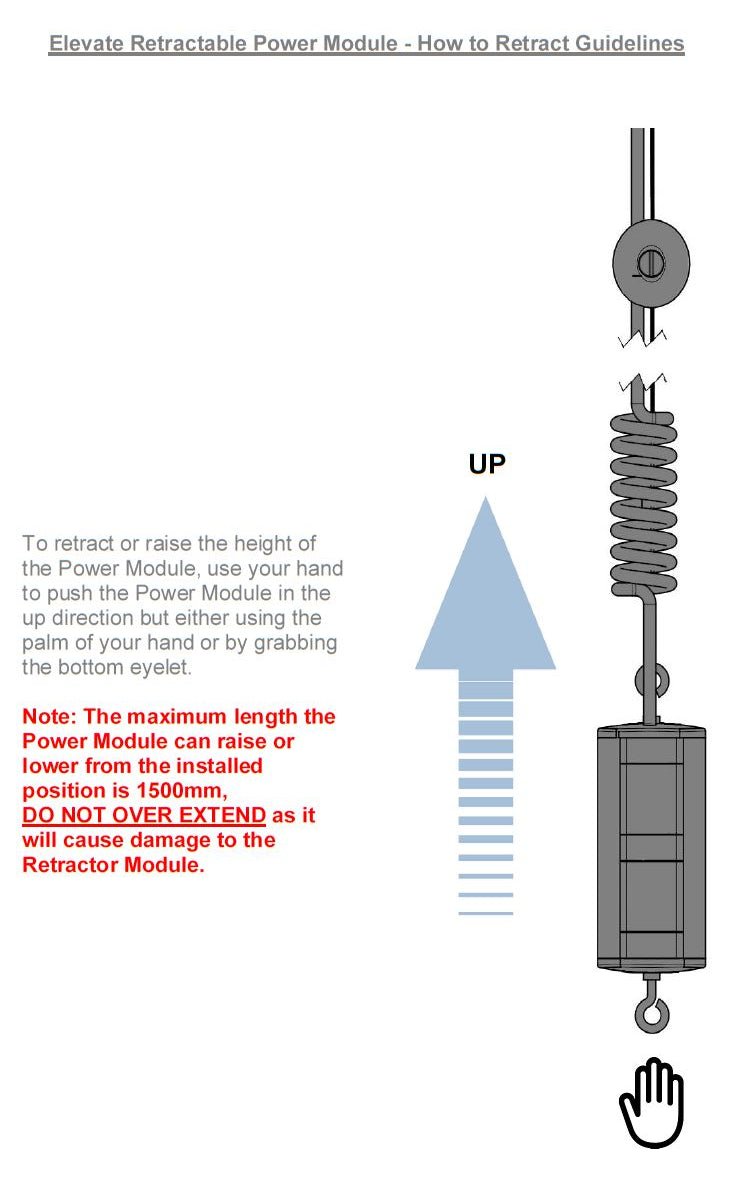

- To extend, pull down using the eyelet at the bottom and when at the required height release. To retract, pull down using the eyelet and release.

- Fully customisable GPO and USB configurations and alternative colours-POA

Additional components required:

- Anchors, mounts and fixings to building structure. This should be assessed based on each individual installed position and supplied by your installer.

Complies to Commercial Australian Standards.

Note: The Softwiring Shop takes no responsibility for injury or damage if incorrectly installed. We recommend a qualified tradesperson and also a qualifies electrician.
