Elevate is a ceiling mounted retractable power solution specifically designed to accommodate a flexible and changing workspace.

Elevate allows the workplace to set-up with freedom without the constraints of fixed floor boxes and powerpoles or umbilical cords by installing retractable power modules that can be lowered to the workpoint.

Click here for the Installation Instructions.

Product Features

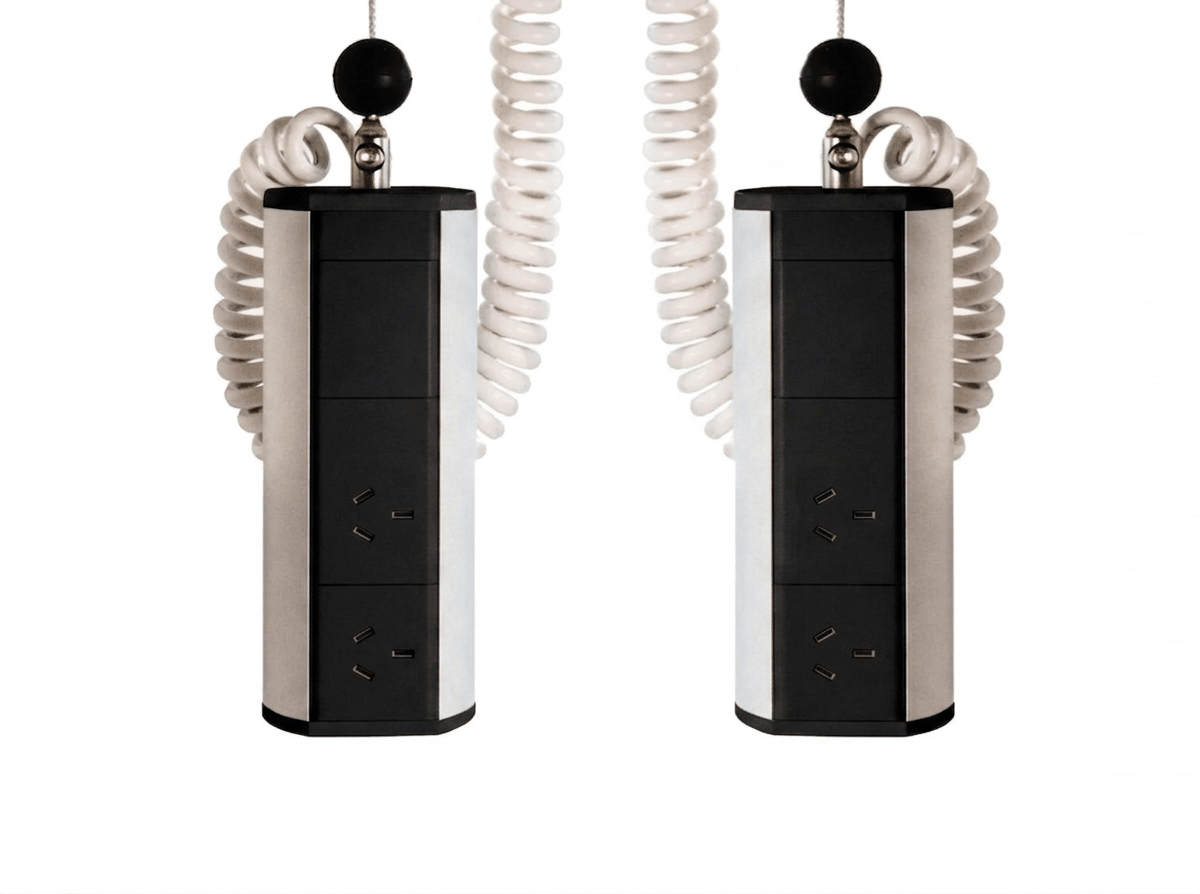

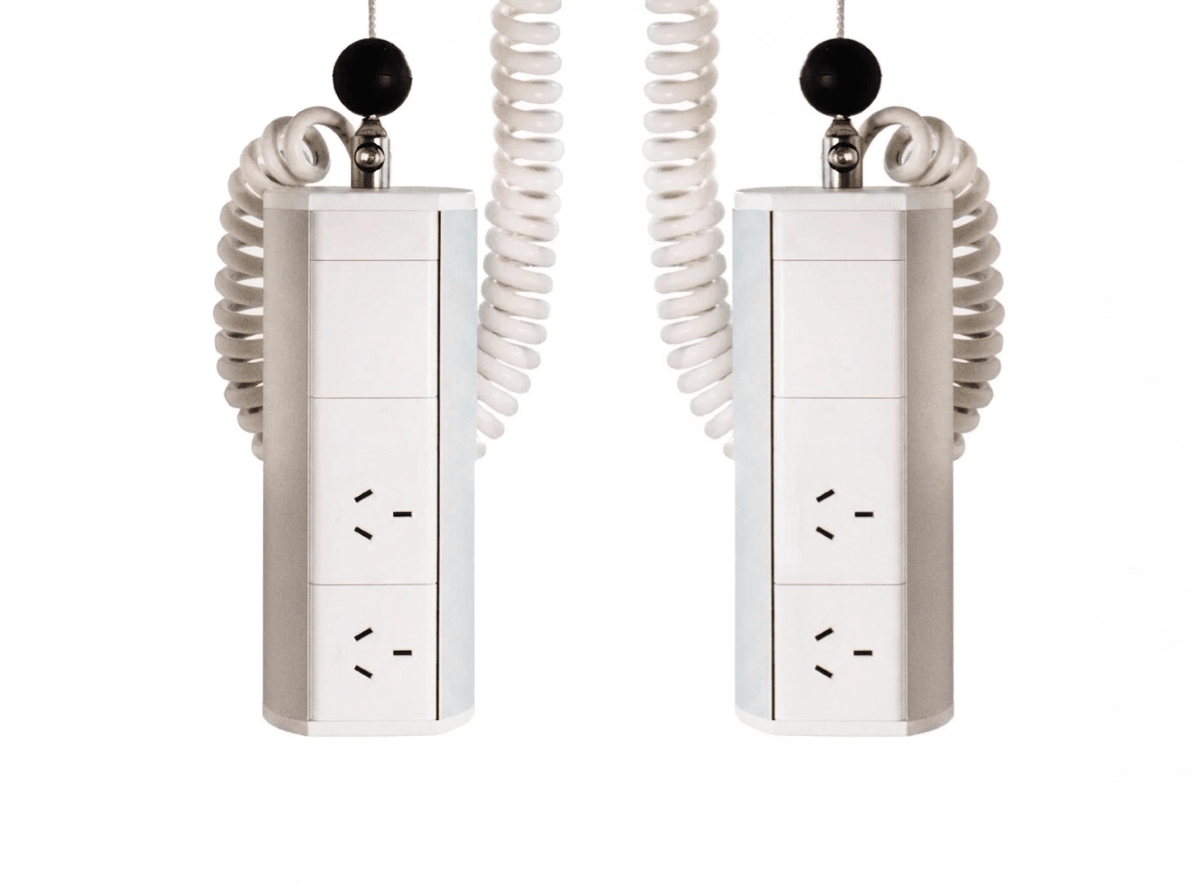

- CONFIGURATION: 2 (Two) GPO Points to both faces.

- Maximum extending/retracting length 1500mm (DO NOT OVER EXTEND OR IT CAN DAMAGE THE MECHANISM).

- Hanging wire up to 4m to accommodate high ceilings (Excludes site specific anchors, mounts and fixings to building structure).

- Comes with a 3-Plug with 1000mm past the end of the cable coil.

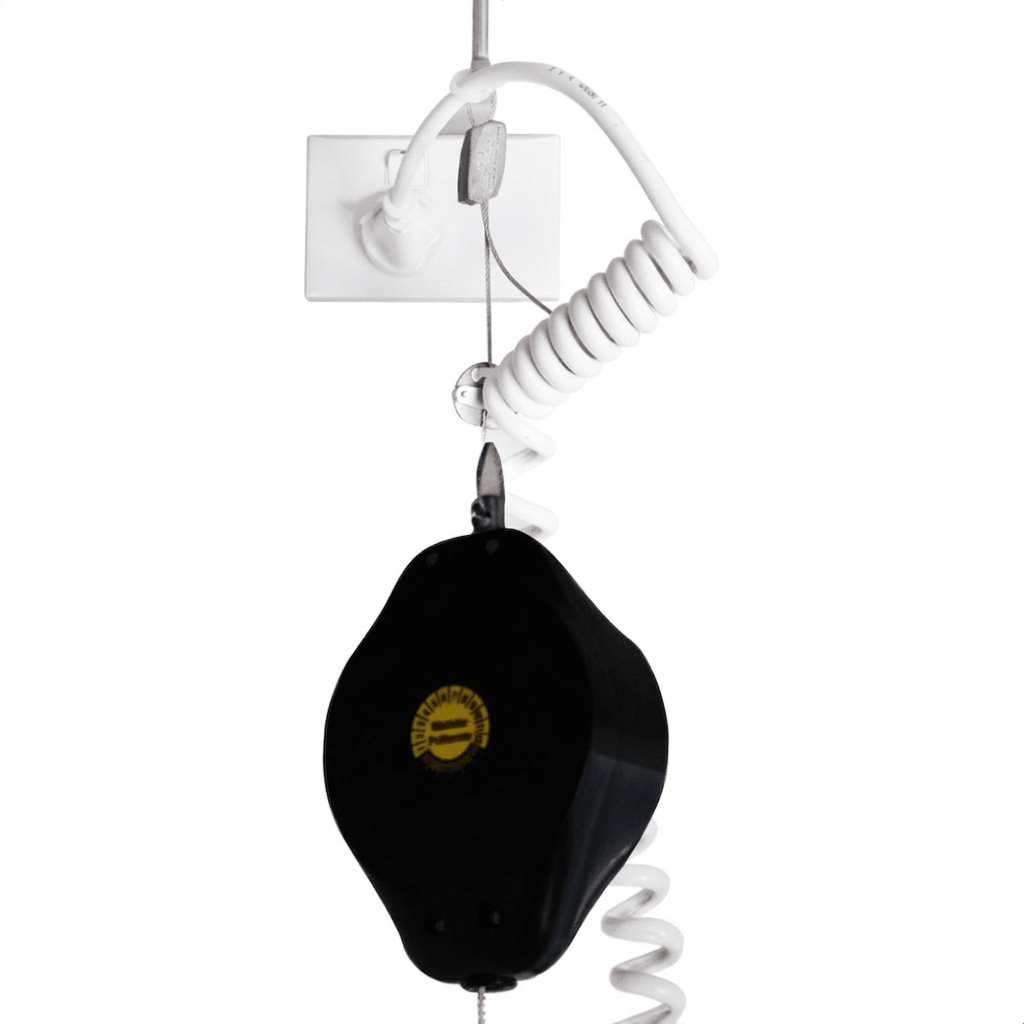

- Retractable mechanism ball is only available in Black and may require adjusting the tension if the power module does not stay in the required position when lowered.

- To extend, pull down using the eyelet at the bottom and when at the required height release. To retract, pull down using the eyelet and release. NOTE: IF NOT PULLED DOWN GENTLY, USED AS PER THE GUIDELINES ATTACHED OR MISTREADED, THE CORD WILL BREAK AND THIS IS NOT COVERED BY THE WARRANTY.

- Fully customisable GPO and USB configurations and alternative colours-POA

Additional components required:

- Anchors, mounts and fixings to building structure. This should be assessed based on each individual installed position and supplied by your installer.

- The colour refers to the majority of parts excluding the casing as per the image shown which due to increased manufacturing costs now comes standard as anodised extrusion casing.

- The casing is available in Black or White with matching powdercoat casing at an additional cost as per the below costs. This is also add additional manufacturing time to the lead-times noted below. Please email us for a quote and there is a minimum order quantity required.

Complies to Commercial Australian Standards.

Note: The Softwiring Shop takes no responsibility for injury or damage if incorrectly installed. We recommend using a qualified tradesperson and a qualified electrician.
