10 (Ten) GPO Module Set - VERTICAL GPO'S

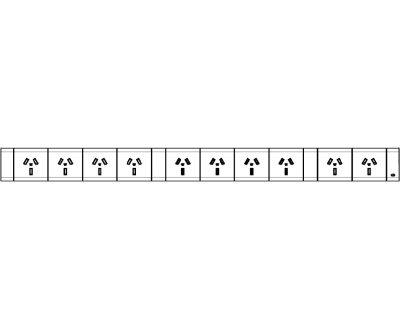

Softwiring Auto-switched Gang of 10 GPO points (Double GPO and 2 No. Quad GPO's) with Vertical GPO points to all configured as per the image provided. This is achieved by cutting off the end fascia's of the GPO Modules so they can all clip together. No on site modification required as it is carried out in the factory.

Male and female connectors at either end for connection to leads or junction boxes.

The GPO Module can clip into 2mm thick material, cut-out dimensions are 576mmL x 42mmH. Depending on the material and powdercoat thickness the cut-out size shown may need to be adjusted slightly.

If the material is greater than 2mm a there is no standard thick panel bracket available for this configuration.

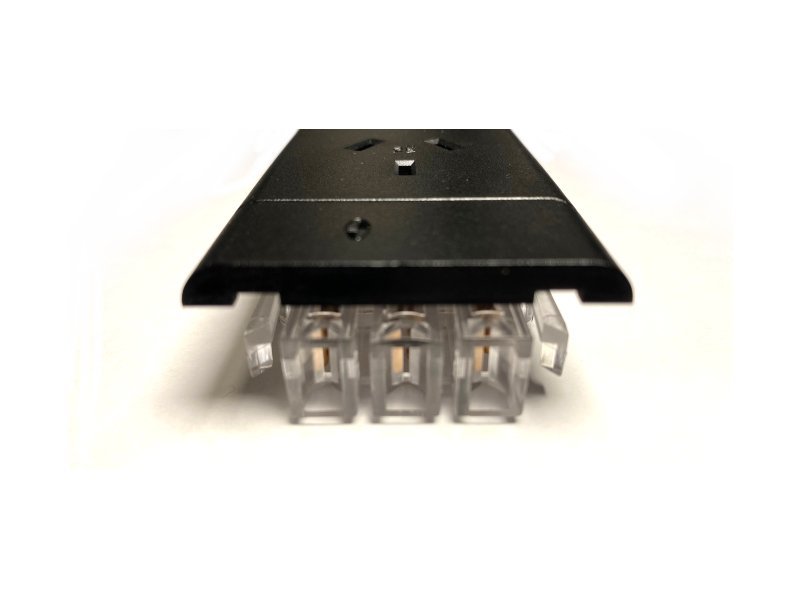

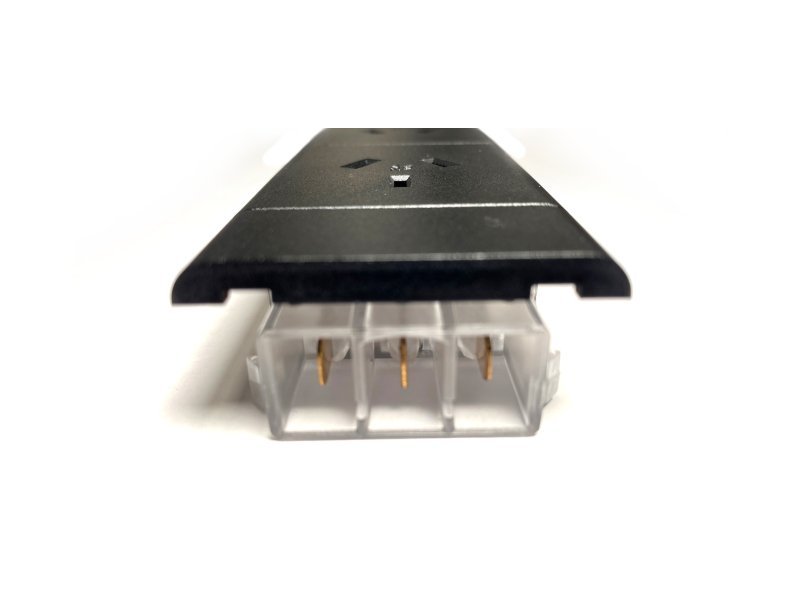

Note: End images are for male or female illustration only.

Complies to Commercial Australian Standards.
